A mathematician named DeMorgan developed a pair
of important rules regarding group complementation in Boolean algebra. By
group complementation, I'm referring to the complement of a group of
terms, represented by a long bar over more than one variable.
You should recall from the chapter on logic gates that inverting all
inputs to a gate reverses that gate's essential function from AND to OR, or
visaversa, and also inverts the output. So, an OR gate with all inputs
inverted (a NegativeOR gate) behaves the same as a NAND gate, and an AND
gate with all inputs inverted (a NegativeAND gate) behaves the same as a

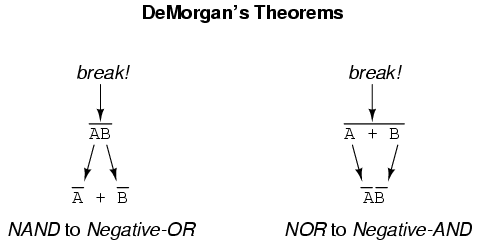

NOR gate. DeMorgan's theorems state the same equivalence in "backward" form:
that inverting the output of any gate results in the same function as the
opposite type of gate (AND vs. OR) with inverted inputs:
A long bar extending over the term AB acts as a grouping symbol, and as
such is entirely different from the product of A and B independently
inverted. In other words, (AB)' is not equal to A'B'. Because the "prime"
symbol (') cannot be stretched over two variables like a bar can, we are
forced to use parentheses to make it apply to the whole term AB in the
previous sentence. A bar, however, acts as its own grouping symbol when
stretched over more than one variable. This has profound impact on how
Boolean expressions are evaluated and reduced, as we shall see.
DeMorgan's theorem may be thought of in terms of breaking a long
bar symbol. When a long bar is broken, the operation directly underneath the
break changes from addition to multiplication, or visaversa, and the broken
bar pieces remain over the individual variables. To illustrate:
When multiple "layers" of bars exist in an expression, you may only break
one bar at a time, and it is generally easier to begin simplification
by breaking the longest (uppermost) bar first. To illustrate, let's take the
expression (A + (BC)')' and reduce it using DeMorgan's Theorems:
Following the advice of breaking the longest (uppermost) bar first, I'll

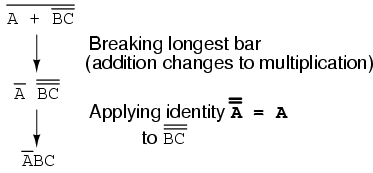

begin by breaking the bar covering the entire expression as a first step:

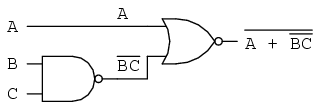

As a result, the original circuit is reduced to a threeinput AND gate
with the A input inverted:

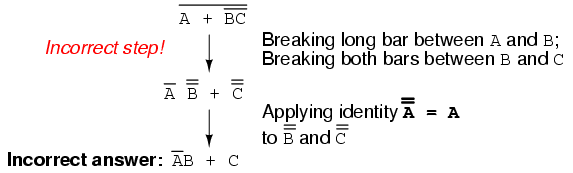

You should never break more than one bar in a single step, as
illustrated here:
As tempting as it may be to conserve steps and break more than one bar at
a time, it often leads to an incorrect result, so don't do it!

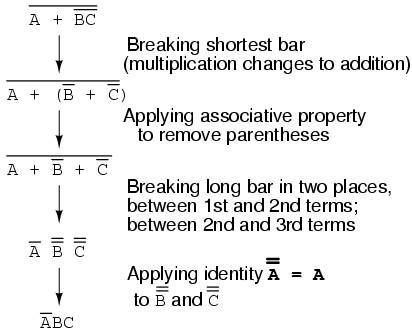

It is possible to properly reduce this expression by breaking the short
bar first, rather than the long bar first:
The end result is the same, but more steps are required compared to using
the first method, where the longest bar was broken first. Note how in the
third step we broke the long bar in two places. This is a legitimate
mathematical operation, and not the same as breaking two bars in one step!
The prohibition against breaking more than one bar in one step is not
a prohibition against breaking a bar in more than one place. Breaking in
more than one place in a single step is okay; breaking more than one
bar in a single step is not.
You might be wondering why parentheses were placed around the
subexpression B' + C', considering the fact that I just removed them in the
next step. I did this to emphasize an important but easily neglected aspect
of DeMorgan's theorem. Since a long bar functions as a grouping symbol, the
variables formerly grouped by a broken bar must remain grouped lest proper
precedence (order of operation) be lost. In this example, it really wouldn't
matter if I forgot to put parentheses in after breaking the short bar, but
in other cases it might. Consider this example, starting with a different
expression:

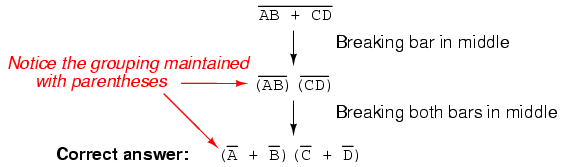

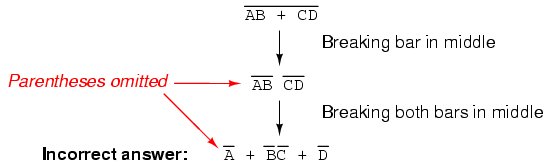

As you can see, maintaining the grouping implied by the complementation
bars for this expression is crucial to obtaining the correct answer.

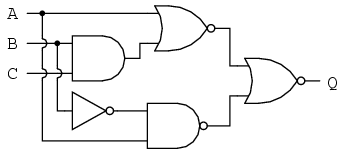

Let's apply the principles of DeMorgan's theorems to the simplification
of a gate circuit:
As always, our first step in simplifying this circuit must be to generate
an equivalent Boolean expression. We can do this by placing a subexpression
label at the output of each gate, as the inputs become known. Here's the
first step in this process:

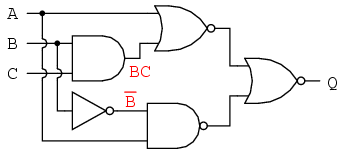

Next, we can label the outputs of the first NOR gate and the NAND gate.
When dealing with invertedoutput gates, I find it easier to write an
expression for the gate's output without the final inversion, with an
arrow pointing to just before the inversion bubble. Then, at the wire
leading out of the gate (after the bubble), I write the full, complemented
expression. This helps ensure I don't forget a complementing bar in the
subexpression, by forcing myself to split the expressionwriting task into
two steps:

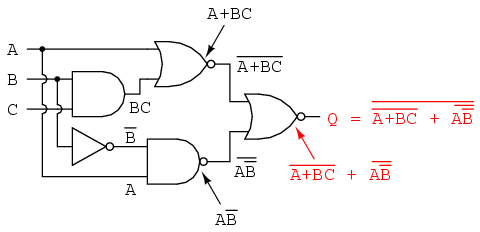

Finally, we write an expression (or pair of expressions) for the last NOR
gate:

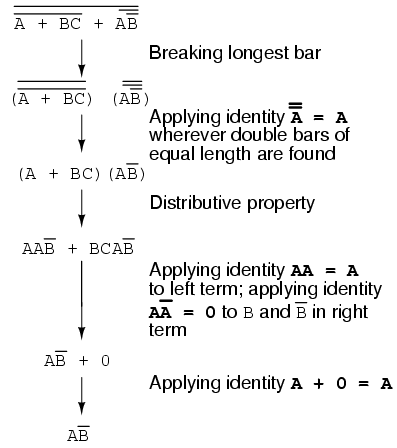

Now, we reduce this expression using the identities, properties, rules,
and theorems (DeMorgan's) of Boolean algebra:
The equivalent gate circuit for this muchsimplified expression is as
follows:
REVIEW
DeMorgan's Theorems describe the equivalence between gates with
inverted inputs and gates with inverted outputs. Simply put, a NAND gate
is equivalent to a NegativeOR gate, and a NOR gate is equivalent to a
NegativeAND gate.
When "breaking" a complementation bar in a Boolean expression, the
operation directly underneath the break (addition or multiplication)
reverses, and the broken bar pieces remain over the respective terms.
It is often easier to approach a problem by breaking the longest
(uppermost) bar before breaking any bars under it. You must never
attempt to break two bars in one step!
Complementation bars function as grouping symbols. Therefore, when a
bar is broken, the terms underneath it must remain grouped. Parentheses
may be placed around these grouped terms as a help to avoid changing
precedence.
