One method of addressing the digital ramp ADC's
shortcomings is the so-called successive-approximation ADC. The only
change in this design is a very special counter circuit known as a
successive-approximation register. Instead of counting up in binary
sequence, this register counts by trying all values of bits starting with
the most-significant bit and finishing at the least-significant bit.
Throughout the count process, the register monitors the comparator's output
to see if the binary count is less than or greater than the analog signal
input, adjusting the bit values accordingly. The way the register counts is
identical to the "trial-and-fit" method of decimal-to-binary conversion,
whereby different values of bits are tried from MSB to LSB to get a binary
number that equals the original decimal number. The advantage to this
counting strategy is much faster results: the DAC output converges on the
analog signal input in much larger steps than with the 0-to-full count
sequence of a regular counter.

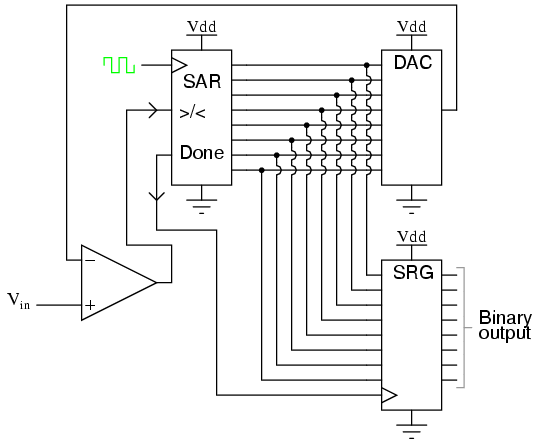

Without showing the inner workings of the successive-approximation
register (SAR), the circuit looks like this:
It should be noted that the SAR is generally capable of outputting the
binary number in serial (one bit at a time) format, thus eliminating
the need for a shift register. Plotted over time, the operation of a
successive-approximation ADC looks like this:
Note how the updates for this ADC occur at regular intervals, unlike the
digital ramp ADC circuit. |
