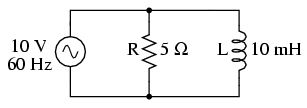

| Parallel resistor-inductor circuitsLet's take the same components for our
                    series example circuit and connect them in parallel:
                      Because the power source has the same
                    frequency as the series example circuit, and the resistor
                    and inductor both have the same values of resistance and
                    inductance, respectively, they must also have the same

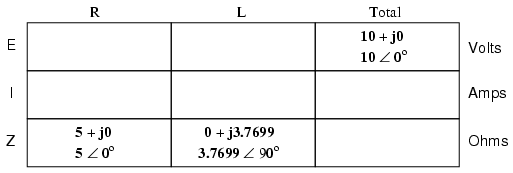

                    values of impedance. So, we can begin our analysis table
                    with the same "given" values:
                      The only difference in our analysis
                    technique this time is that we will apply the rules of
                    parallel circuits instead of the rules for series circuits.

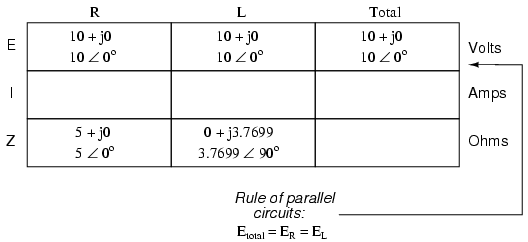

                    The approach is fundamentally the same as for DC. We know
                    that voltage is shared uniformly by all components in a
                    parallel circuit, so we can transfer the figure of total
                    voltage (10 volts ∠ 0o) to all components
                    columns:
                      Now we can apply Ohm's Law (I=E/Z)
                    vertically to two columns of the table, calculating current
                    through the resistor and current through the inductor:
                      Just as with DC circuits, branch currents in
                    a parallel AC circuit add to form the total current (Kirchhoff's
                    Current Law still holds true for AC as it did for DC):

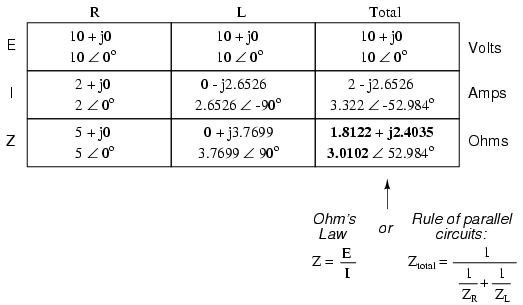

                      Finally, total impedance can be calculated
                    by using Ohm's Law (Z=E/I) vertically in the "Total" column.
                    Incidentally, parallel impedance can also be calculated by
                    using a reciprocal formula identical to that used in
                    calculating parallel resistances.
                      The only problem with using this formula is
                    that it typically involves a lot of calculator keystrokes to
                    carry out. And if you're determined to run through a formula
                    like this "longhand," be prepared for a very large amount of
                    work! But, just as with DC circuits, we often have multiple
                    options in calculating the quantities in our analysis
                    tables, and this example is no different. No matter which
                    way you calculate total impedance (Ohm's Law or the
                    reciprocal formula), you will arrive at the same figure:


                      REVIEW:
                      Impedances (Z) are managed just like
                      resistances (R) in parallel circuit analysis: parallel
                      impedances diminish to form the total impedance, using the
                      reciprocal formula. Just be sure to perform all
                      calculations in complex (not scalar) form! ZTotal
                      = 1/(1/Z1 + 1/Z2 + . . . 1/Zn)

                      Ohm's Law for AC circuits: E = IZ ; I =
                      E/Z ; Z = E/I
                      When resistors and inductors are mixed
                      together in parallel circuits (just as in series
                      circuits), the total impedance will have a phase angle
                      somewhere between 0o and +90o. The
                      circuit current will have a phase angle somewhere between
                      0o and -90o.
                      Parallel AC circuits exhibit the same
                      fundamental properties as parallel DC circuits: voltage is
                      uniform throughout the circuit, branch currents add to
                      form the total current, and impedances diminish (through
                      the reciprocal formula) to form the total impedance.  |
